Claydon Pay Rake

Effective stubble management, with high capacity and low costs.

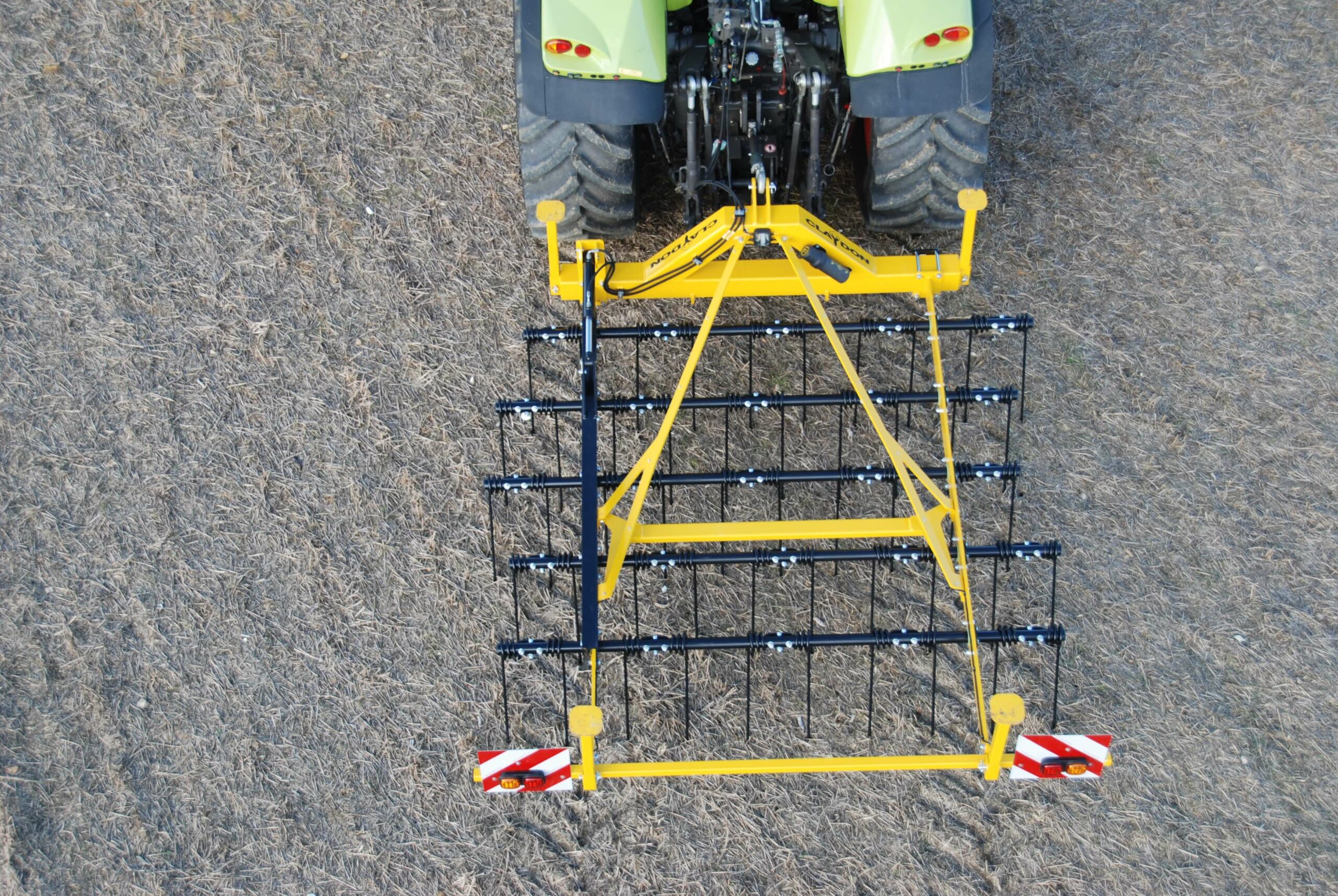

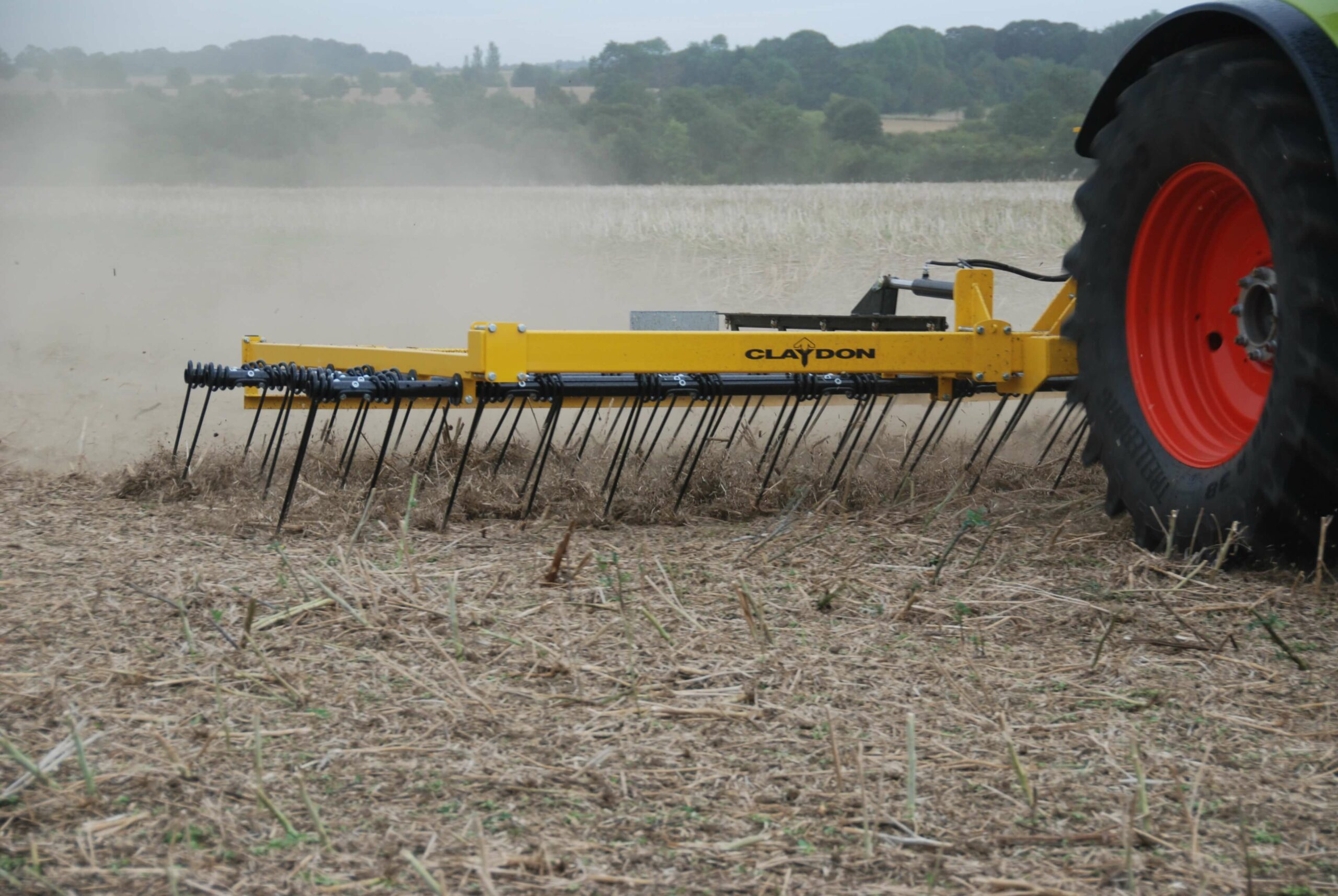

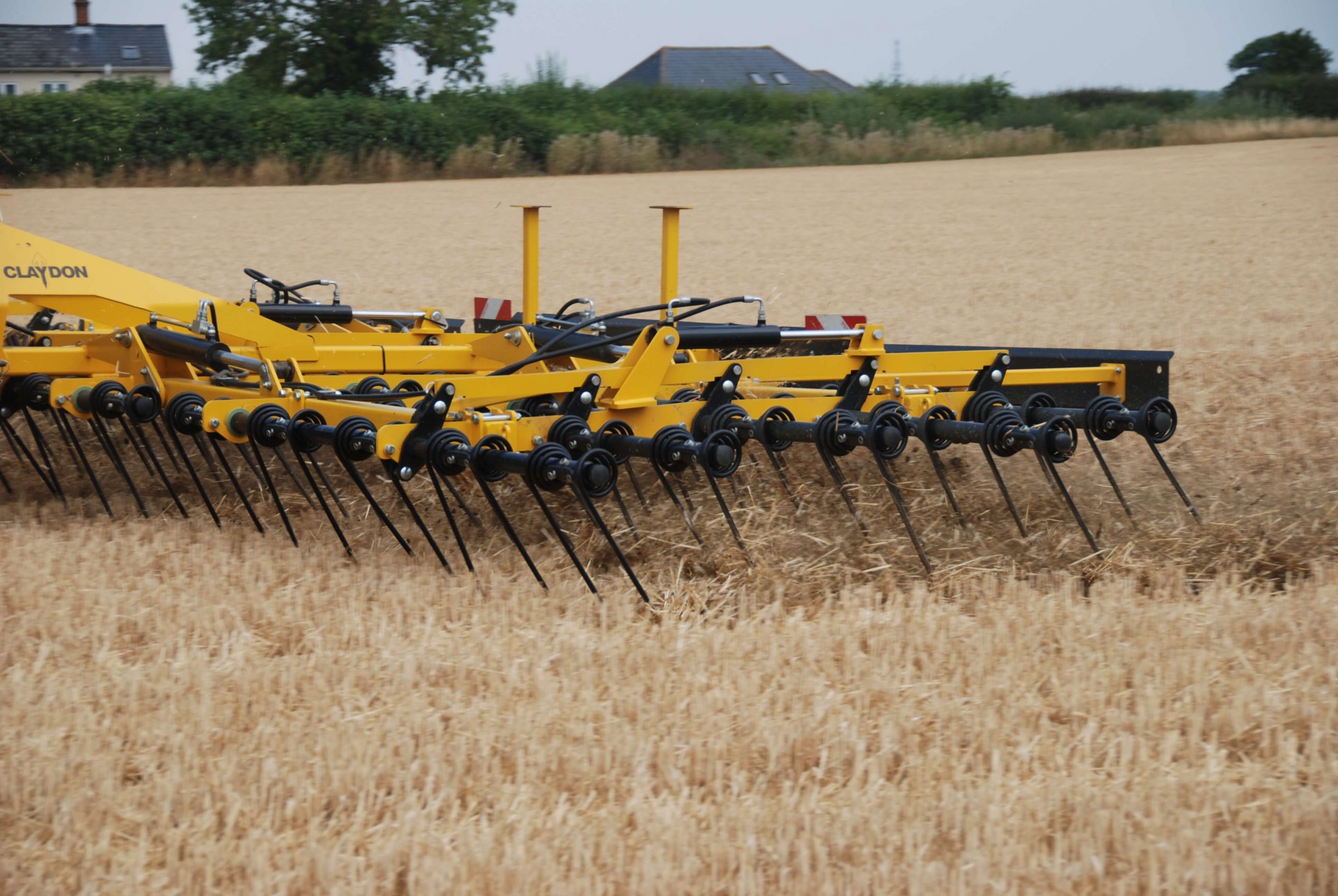

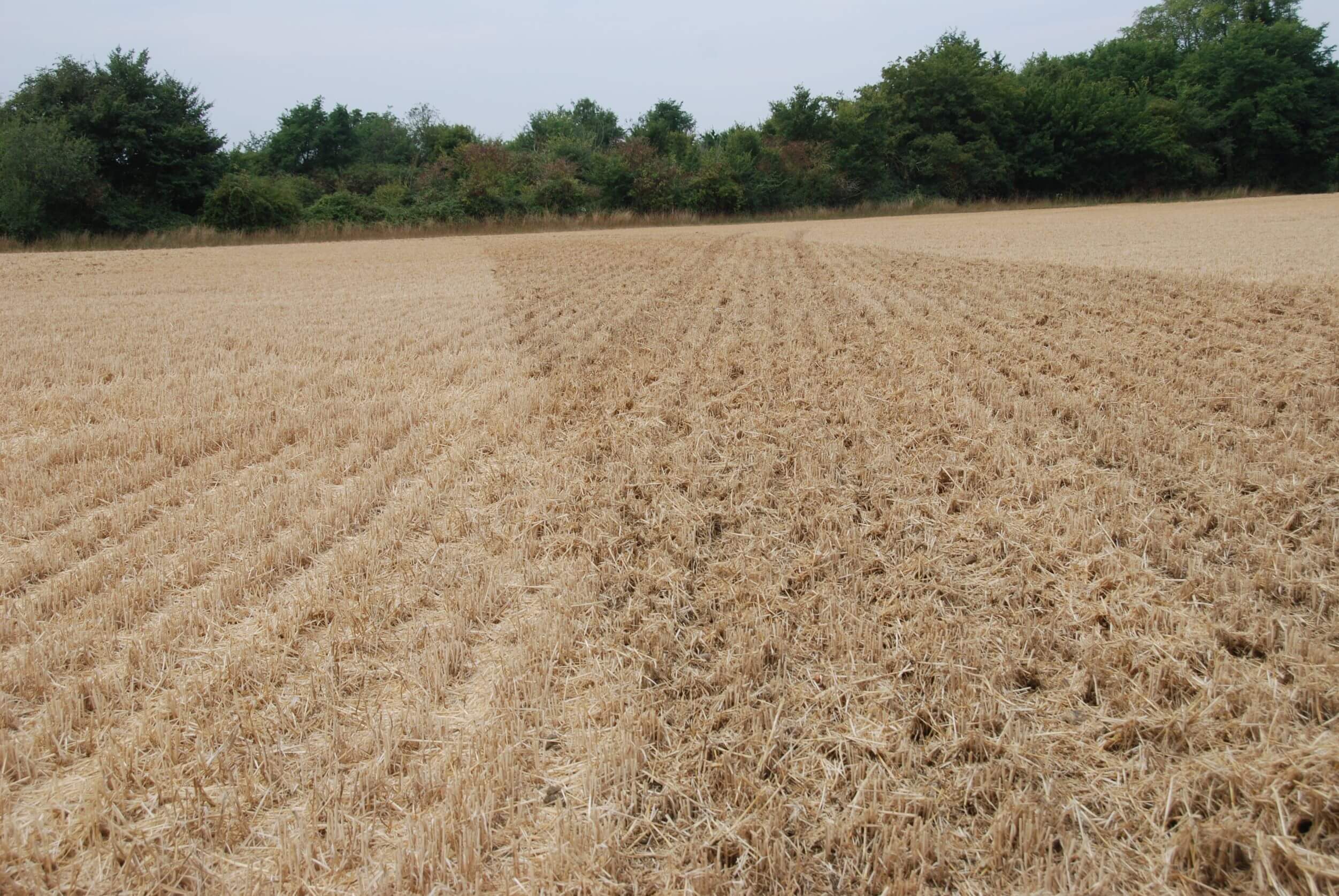

The Claydon straw rake creates micro-furrows in the top 30 mm of soil and uses retained moisture for fast and even weed germination. The rake removes and destroys weeds at the cotyledon and in the single-leaf stage. The rake destroys pests, exposing them to sunlight. At speeds of up to 25 km/h, the Claydon straw rake is an effective stubble management equipment. Straw is mixed into the soil layer, increasing insulation, retaining moisture and starting the decomposition of plant debris. The straw rake can be used before or after cultivation, to even out the soil and create fine furrows.

Technical specifications

Model 3 m 7.5 m 9 m 12.5 m 15 m
Capacity (at 20 km/h)* (ha) 4 10 12 16 20
Minimum power requirements* (CP) 60 150 180 250 300
Forward Speed* (km/h) 15-25 15-25 15-25 15-25 15-25
Fuel consumption* (l/ha) 2 2 2 2 2
Road transport width (m) 3,00 2,24 2,99 2,60 2,75
Road transport height (m) 1,18 3,22 3,55 2,73 3,00
Weight (kg) 590 1500 2100 3870 4075
Pairs of 14 mm teeth (optional 16 mm) 25 60 75 100 120
Hydraulically adjustable wheel depth No No No Yes Yes
Reflective panels and protections Yes Yes Yes Yes Yes
Coupling with the tractor CAT 2 Worn CAT 3 Worn CAT 3 Worn Treated Treated

*typical/suggested
