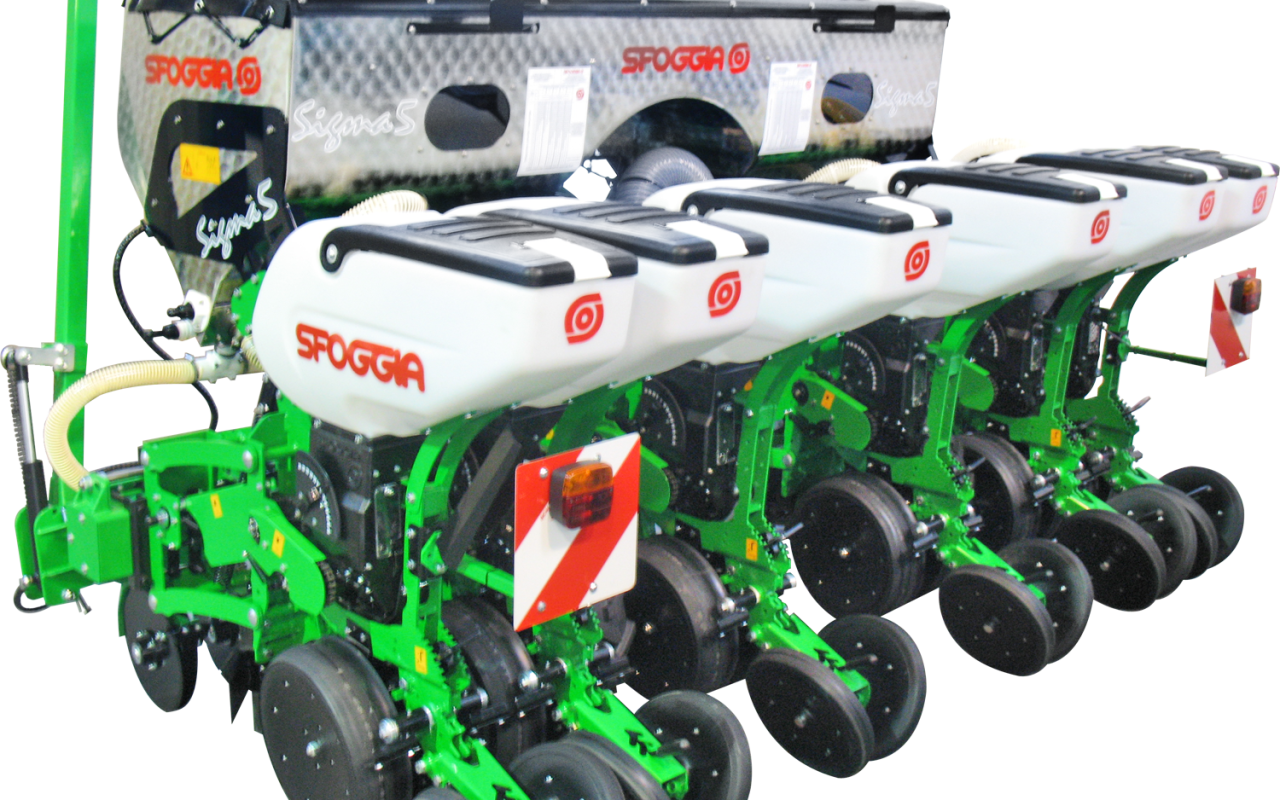

Sfoggia Sigma 5 6 row seeders

Contact a representative
Financing

Electronic control of seed distribution, with a device for counting the hectares worked, displaying the working speed, the norm of seeds distributed per hectare, etc.

Disc footprint markers, hydraulically operated

Technical specifications

TECHNICAL SPECIFICATIONS

  • Type: worn
  • Working width: 4.2 m
  • Transport width: max. 4.5 m
  • Frame: rigid, square pipe with a section of 150x150x8 mm
  • Hopper capacity for seeds: 50 l/section
  • Equipment for incorporating chemical fertilizers: 1 800 l stainless steel hopper; double disc furrow with a diameter of 375 mm; Mechanical Distributor with Grooves
  • No. of sowing sections: 6, at 70 cm with pneumatic distributor and deformable parallelogram
  • Sowing discs: for corn and sunflower
  • Type of seed furrows: double disc, with settling heel and grain conduction tube
  • Working depth adjustment mode: with 2 rubber wheels 400x115 mm, on either side of the furrow
  • Type of settlement wheels: V-shaped, rubber, 320x50 mm
  • Transmission type: centralised, with 2-wheel support chain
  • Norm adjustment per hectare: with chain-wheel gearbox
